activPilot Topstar

activPilot Topstar

• Can be used for 13 mm groove centre position from a rebate depth of 24 mm
• For large and heavy sashes weighing up to 130 kg with no additional components to transfer the load
• Suitable for wooden profiles that are flush-mounted on the inside and rebated wooden profiles
• Suitable for narrow frames with small free size of the frame
• Max. opening angle 95°

Winkhaus Plus

+ Can be combined easily with the activPilot modular system
+ Compatible with top rails from the activPilot Select product range
+ Easy three-dimensional adjustment
+ Comfortable fitting – simply lower the sash onto the hinge brackets in slightly tilted position
+ Energy-saving effect – sealing plane is not interrupted

For wooden windows

Sash dimensions:

• Min. sash rebate height 230 mm
• Min. sash rebate width 380 mm
• Max. sash rebate height: 2800 mm
• Max. sash rebate width: 1725 mm
• Side ratio: SRW:SRH ≤ ۲:۱
• Max. sash weight: 130 kg *

Adjustment options:

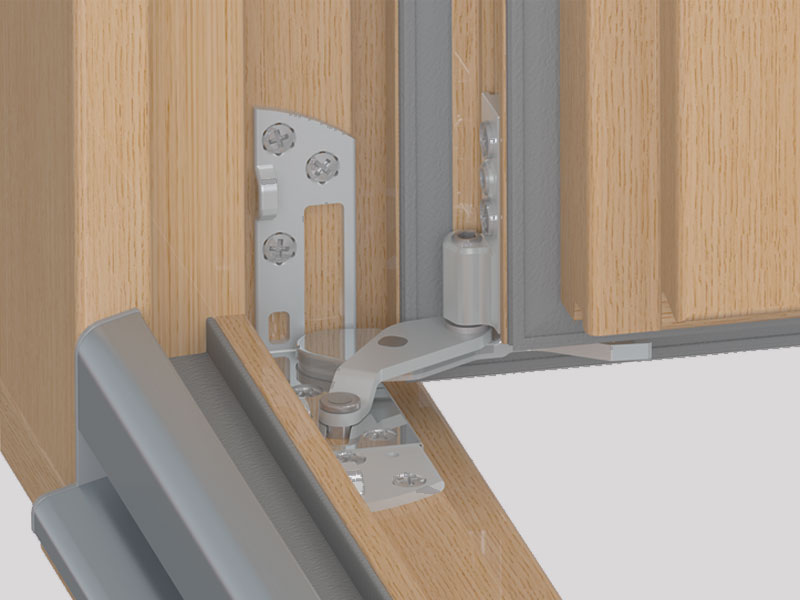

Sash corner hinge:

• Height adjustment: + 2 /- 1.5 mm
• Side adjustment: + 2.5 / – 1.5 mm
• Contact pressure adjustment: +/- 0.8 mm

Shear:

• Can be raised by 2.5 mm and lowered by 1.5 mm

Note:
* The binding sash weights and sash sizes can be found in the relevant technical catalogues and usage diagrams they contain.
